MMC introduces new high-speed LAN CABLE for PoE Applications 90W CAT6A F/FTP
Following the new PoE standard (IEEE802.3bt), Multimedia Connect launches a new CAT6A LAN cable – F6004SHC5 – which provides 90W to a remote power supply. The F6004SHC5 ensures the optimal performance of the 4PPoE.
90W power

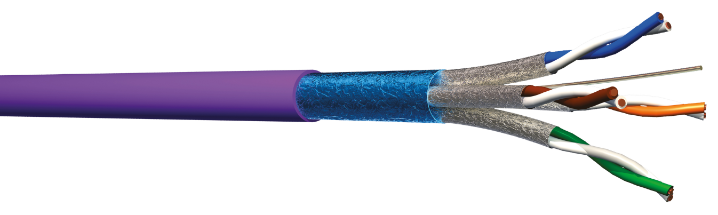

The F6004SHC5 cable has an AWG22 section, which allows it to support 4PPoE and 90W while also overcoming the loss of Joules.
In addition, the cable has been designed with oxygen reducing components such as skin / foam / skin insulation, thus reducing the insulation of the conductor while also improving heat dissipation.
CAT6A cable, and more
Having been tested at 600 MHz, this new cable performs beyond the standard IEC61156-5 Cat6A requirements. Its low electrical resistivity allows Cat6A transmission up to 125 m – well beyond maximum standards – thus making it an ideal solution for cameras and all remote sites.

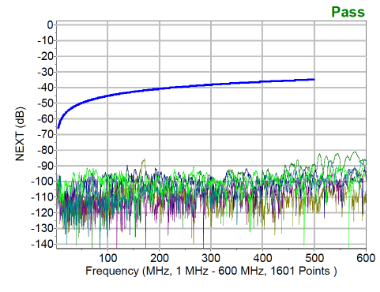

Attenuation tests performed on the F6004SHC5 cable:
CPR certified
Compliant with the requirements for public access establishments, the CPR level of this cable is Cca certified (s1, d1, a1), Multimedia Connect recommends the use of this CPR cable in hospitals.
EMC optimization

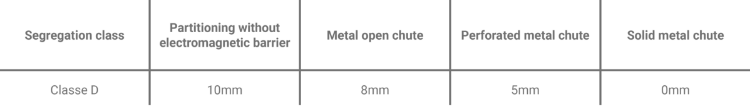

The F6004SHC5 cable benefits from a D Type separation class, which improves shielding efficiency and EMC by providing both general and individual shielding of pairs. In the case of EMC-sensitive sites, such as hospitals, segregation class D allows a simplified installation that reduces the space between high current and low current.
Applications
This high-speed 90W VDI cable is the perfect solution to the various PoE applications in buildings

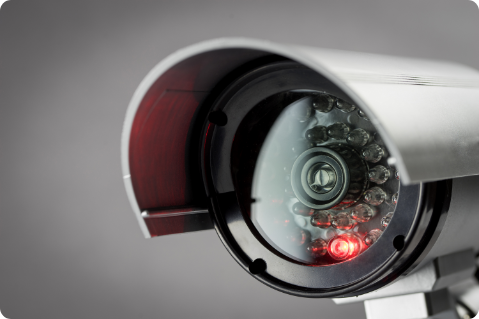

- CCTV camera
- Wi-Fi hotspot
- Access control

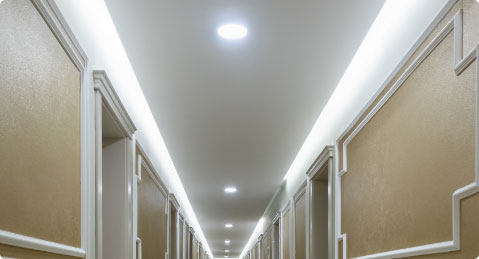

- Gestion lighting (luminaires IP)
